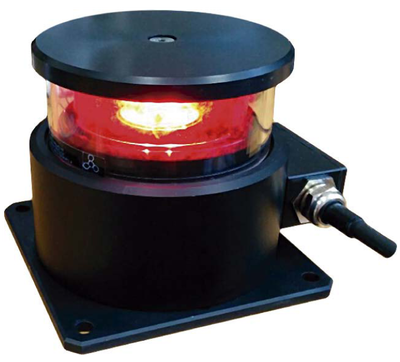

Products: Navigation Lights: LED Navigation Light

General description

Application and Requirements
For all sea going vessels with a lenght of 20 meters or more
According to:
- International Regulations for Preventing Collisions at Sea 1972 (72 COLREGS – IMO72)
- EN-ISO 14744
- EN 60945 (2002)



Technical characteristics
Housing: Black anodized seawater resistant aluminum
Lens: Borosilicate glass

  Fully resistant to sea environment
  Non magnetic
  Integrated terminal box in every light

Operational temperature: From -25° C to +55° C
Protection: IP68
Lifetime: Approx. 50.000 hours for main plus 50.000 hours for
spare light (main and spare light combined in the
same module)
Weight: 4 kg
Power supply: 220/115/24 V
Power consumption: 3-15W
Mounting and cable connection: - Two cable glands: Optional PG13,5, PG16, PG21
- Four mounting holes ø11

Delivery of custom made lights upon request
Antivibration system
H eating system
