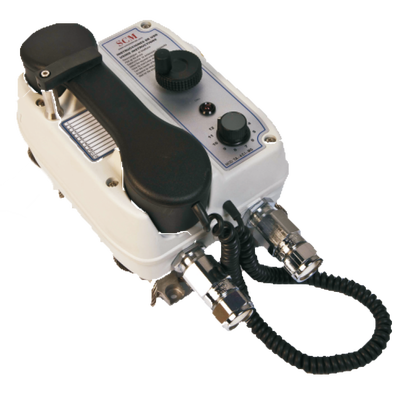

Products: Military Vessels Telephones: TA - 4CI - MG Telephone

General description

Excellent speech quality
12 extensions selector switch (extending up to 24)
For use on open air deck areas and bridge wings
Material: ABS plastic (fireproof)
Earpiece: ABS plastic (fireproof)
                  Spiral cord (60 cm extensible to 1.5 m)
Available headphone connection for noisy areas: Model TA-ACM-A
Optional acoustic/luminous alarm via relay box
Includes metalic cableglands
Includes dampers (VIBCABLE V3CA8010 series)
    - Damping up to 40%
    - High deflection in all directions
    - Natural frequency between 5 Hz and 25 Hz
    - Compliant with MIL-STD-167
Other features: earpiece-lock system


Technical characteristics
Operating temperature:
Acoustic alarm:
Relative humidity:
-20ºC to +50ºC
80 dB(A) (1 m)
Up to 95% (non condensing)
Bulkhead or console
Approx. 2.5 Kg
