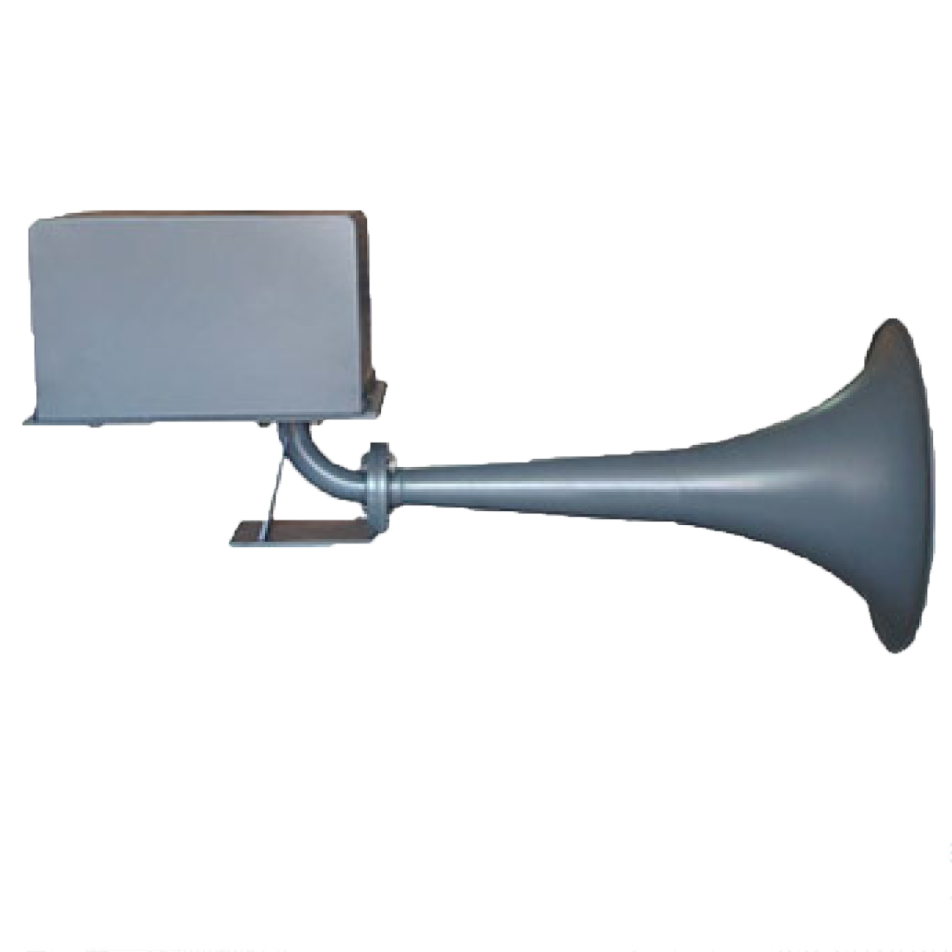

Geomar C-138 DB Air Fog Horn
Product Description Geomar C-138 DB is an air horn ruggedly constructed to withstand the most severe sea environment using the best seawater, non-corrosive materials. It has a heating thermostatically controlled for navigation in polar areas. Application S…
Description
Product Description
Geomar C-138 DB is an air horn ruggedly constructed to withstand the most severe sea environment using the best seawater, non-corrosive materials. It has a heating thermostatically controlled for navigation in polar areas. Application Suitable for vessels with lengths between 75 and 200 metersTechnical specifications
| Design features | |
| Frequency and sound intensity: Audible range: Frequency: | According to IMO 1972 regulations 1,5 miles 160 cps |
| Operation: | Console push button and manual pull Wing push buttons optional. |
| Best seawater, non-corrosive materials: Air horn: Air consumption: Diaphragm diameter: Hose diameter: Heating: Voltage: Weight: Signal controller: | Brass and stainless steel With working pressure between 7 and 40 Kg /cm2 30 l /sec 125 mm 16 mm 24V, 220V, 200W 24V, 220V 35 kg Audiotronic I / II (optional) |
Certificates Type approved by Det Norske Veritas (DNV)
