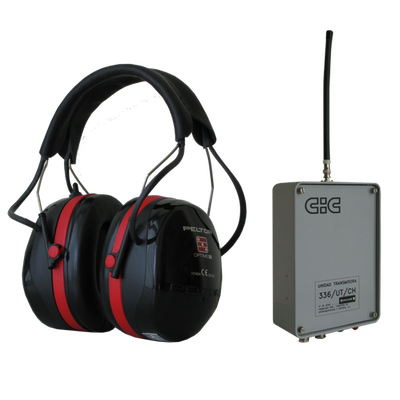

Products: Military Public Address System: CIC-336/UT/UR Wireless headphone system

General description

The Wireless Headphone System CIC-336/UT/UR allows for diffusion of broadcast and entertainment signals to several wireless headphones in closed spaces.

The headphone system provides operators with a protection against background noise, as the receiver circuit is mounted within a structure that reduces outside noise considerably.

The system consists of a transmitter unit (336/UT) and several receiver units (336/UR).

Features

Technical characteristics
Transmitter unit (CIC-336/UT)
Weight:
Power:
Frequency:
Synthesizer:
Frequency stability:
Modulation type:
Supply:
Assembly:
Antenna:		 3,5 Kg.
Pre-adjustable, 0,1 to 2 W
87 MHZ, internally selectable
Single internal crystal, with double module prescaler
< 10 ppm
FM, +/- 75 Khz deviation
115 V, 60 Hz, 6 W with P.W.=0.8
Of A - shock-resistant light alloy, for fastening to bulkhead
Radiant monopole inside and outside the box,referred to ground
Receiver unit (CIC-336/UR)

Frequency band:
Operational frequency:
Frequency response:
Demodulation:
Sensitivity:
Distortion:
Disconnection:
Antenna:
Power source:
Battery endurance:
Headphones:
Weight:
Finish:



87 to 108 MHz
87 Mhz, internally selectable
From 200 Hz to 10 kHz
Narrow band FM
Greater than –100 dBm over 75 Ohms.
< 0,2% for 1KHz and + 50 kHz of modulation
By switch with exterior access, with pilot indicating ‘on’position
Wire incorporated
3 V (2 alkaline batteries, R6 type)
> 48 hours of uninterrupted operation
2x40 mm Mylar loudspeaker, 50 mW
450 gr
ABS, with PVC contact cushions with plastic foam interior


Certifications /UT (structure)
Shock: MIL-S-901C Grade A
Electromagnetic
compatibility:		 EM Emission (M/01) MIL-STD-461D/462D
EM Emission (M/03) MIL-STD-461D/462D
EM Immunity (M/03) MIL-STD-461D/462D
