General description

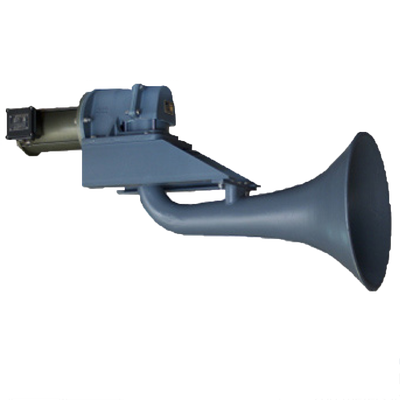

Geomar EL-138 DB is an electrically powered piston horn certified for vessels of 75 to
200 meters in length, constructed with high strength materials.
The horn is fully compliant with IMO Regulations (1972).
Application
Suitable for vessels of 75 to 200 meters in length.
Operates in all temperatures including both tropic and artic
Civil and Military vessels
|
Design Features |
|
|
Sound intensity:
Audible range:
Frequency:
|
>138 dB1 mile
2 nautical miles
140 Hz
|
| Operation: |
Electric push button for console mounting
Wing push buttons optional
|
|
Materials:
Voltage:
|
Aluminum-magnesium, galvanized steel
3x220/380-440 AC, 50-60Hz
|
| Contactor with thermal overload protection | |
| Motor: | 3 phase 5,5Kw marine type |
|
Permanent lubrication with grease
Anti condensation and de ice permanent heater
|
|
|
Weight:
Signal controller:
|
95Kg
Audiotronic I / II (optional)
|
Certificates
Spanish Maritime Directorate
