General description

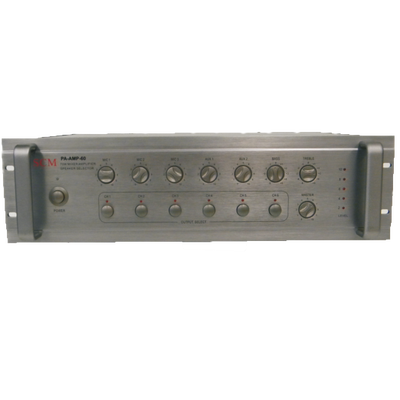

70 W power amplifier in a 19" rack cabinet
Protected against overload and short circuits
Temperature controlled (back-to-front ventilation)
Volume control and power switch
3 microphone inputs and 2 auxiliar inputs
Automatic mute
24 VDC battery backup in case of power failure
LED status indicators
Features
| Technical characteristics | |
|
Power output:
Power consumption:
Power supply:
Frequency response:
Output:
Inputs:
Relative humidity:
Dimensions:
Weight:
|
70 W
120 W
110-120 VDC or 220-240 VCA, 50/60 Hz (24 VDC)
60 Hz - 15 KHz (+/-3dB)
19 W(70V) - 39 W(100V)
Mic 1,2,3: 600 W,5mV - Aux 1,2: 10 KW,170mV
Up to 95% (non condensing)
Approx. 89x483x366 (mm)
Approx. 11.3 Kg
|
